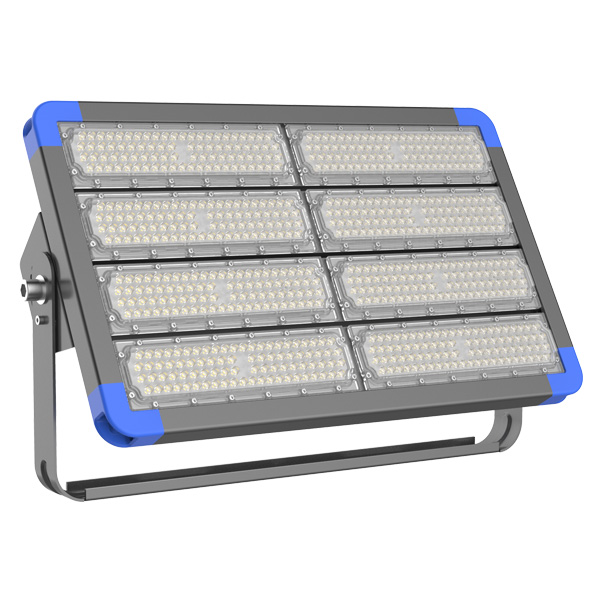

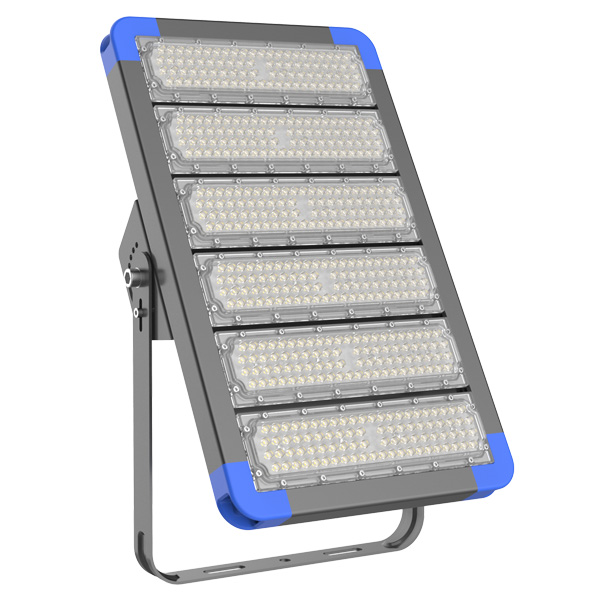

Modular Design IP66 LED Tunnel Light

Modular Design IP66 LED Tunnel Light Featured Image
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light
  • Modular Design IP66 LED Tunnel Light

Short Description:

  • Separate modular design, each module 50W with driver,50W to 600W
  • Pure aluminum 6063 material,colorful aluminum frame available
  • Lumileds/CREE chip,CRI>80,high light efficiency 140-150lm/w
  • Meanwell/Sosen driver,High PF,5 years Warranty,50000H lifespan
  • Application: Tunnel,Square,Plaza,Garden,Lawn,Playground,Golf course etc.


  • CURRENT PRICE: Get Latest Offer
  • OEM/OEM: Available
  • TRADE TERMS: EXW, FOB Shenzhen, CIF, CFR
  • PAYMENT TERMS: T/T 30% deposit, the balance before shipment or L/C
    • Download as PDF

    Product Detail

    TEST REPORT

    APPLICATION

    Product Tags

    • Separate modular design, 50W as a single modular with driver, 50W to 600W option
    • Pure aluminum 6063 material body , colorful aluminum frame makes it more elegent
    • Anti-UV PC optics lens ,Transmittance>94%. Beam angle: 10°/25°/45°/60°/90°/20*50°/30*70°/80*140°
    • Lumileds/CREE chip,CRI >80, High light efficiency 140-150lm/w
    Part No. Power (W) Input Voltage LED Type Lumen(lm) Beam angle  CCT Driver Dimension(mm)
    PS-SDD-50W 50W AC85-277V Philips 3030 7000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L310xW87xH170
    PS-SDD-100W 100W AC85-277V Philips 3030 14000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L310xW87xH228
    PS-SDD-150W 150W AC85-277V Philips 3030 21000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L310xW87xH309
    PS-SDD-200W 200W AC85-277V Philips 3030 28000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L310xW87xH382
    PS-SDD-250W 250W AC85-277V Philips 3030 35000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L310xW87xH459
    PS-SDD-300W 300W AC85-277V Philips 3030 42000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L310xW87xH539
    PS-SDD-400W 400W AC85-277V Philips 3030 56000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L571xW107xH388
    PS-SDD-500W 500W AC85-277V Philips 3030 70000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L571xW107xH461
    PS-SDD-600W 600W AC85-277V Philips 3030 84000lm 15°/30°/45°/60°/90° PW:6000-6500K
     NW:4500K
    WW:3000-3200K    		 Sosen/Meanwell L571xW107xH529



    Ishinelux-Tunne Light Spc.

    installation
