RGB amplifier is used for all our company RGB LED controller. It can accept PWM signal. When adding one RGB amplifier, it can connect to more than double of the number led lights. In theory, RGB amplifier can be connected to numerous.
Product Features:
● Amplifier is constant voltage product,it can work with all kinds of the constant voltage controller.
● Adding one amplifier, it can control more 144w(12V*12A) and connect numerous in theory.
● Output to RGB three channels, each channel max current of 4A.
| Working temperature | -20-60°C |
| Supply voltage | DC5V, 12V~24V optional (specify the required voltage on orders) |
| 0utput | 3 channels |
| Connecting mode | common anode |
| External dimension | L105*W65*H23 mm |
| Packing size | L117*W71*H36 mm |
| Net weight | 105g |
| Gross weight | 125g |
| Static power consumption | <1W |
| Output current | <4A(each channel) |
| Output power | 5V:<60W,12V:<144W, 24V:<288W |
Application Circuit 1- Serial connection:

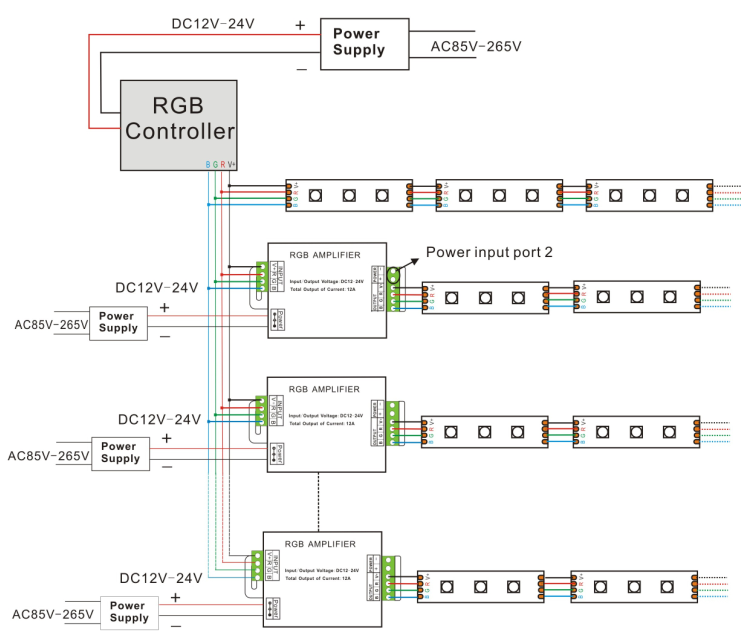

Application Circuit 2- Parallel connection:
